SDRplay

SDRplay

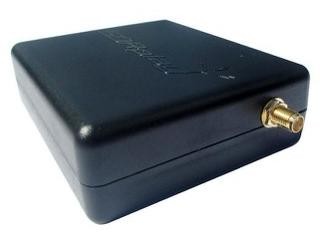

RSP - Radio Spectrum Processor SDR Receiver
Available @ SDRplay.com or HRO hamradio.com

Once purchased you can download and install the drivers etc.
Serial number required to download files.

Key Features:

Robust and strong plastic case
  • Continuous coverage from 100kHz to 2 GHz
  • 12-bit ADC silicon technology (not another 8-bit dongle!)
  • Built-in High-Performance front-end filters
  • Up to 8 MHz bandwidth
  • Good sensitivity and selectivity
  • Low noise floor
  • Simple USB interface (type B socket)
  • SMA antenna socket
  • Powers over the USB cable

Key Benefits:

Ideal for portable operation

  • No need for an up-converter

  • Covers all amateur bands from experimental LF through HF, VHF and UHF

  • Simultaneous entire amateur band monitoring possible

  • Works with all the popular SDR software (HDSDR, SDR# and SDR-Console)

  • Compatible with existing open source radio software

  • ExtIO based plugin available

  • Compatible with Mirics Radio & TV software

  • Software upgradeable for future standards

  • Strong and growing software support network

  • API provided to allow demodulator or application development

  • Multiplatform support including Windows, Linux, Mac and Android

Important Note:

This unit does not include USB cable, antenna connectors, coax cable or antenna -> see accessories below for USB cable and antenna adaptors



Specifications:

  • Frequency range: 100kHz - 2 GHz
  • Bandwidth: 8MHz
  • Connectivity:
    • USB 2.0 (high speed) type B socket for signalling and power
    • SMA RF (female socket)
  • Intermediate Frequency Modes:
    • Zero IF, all IF bandwidths
    • Low IF, IF bandwidths <1.536MHz
  • IF Bandwidth supported:
    • 200 kHz
    • 300 kHz
    • 600 kHz
    • 1.536 MHz
    • 5 MHz
    • 6 MHz
    • 7 MHz
    • 8 MHz
  • Front-end Filtering:
    • Automatically configured:
12 MHz Low Pass Filter
    • 12 – 30 MHz Band Pass Filter
    • 30 – 60 MHz Band Pass Filter
    •  60 – 120MHz Band Pass Filter
    •  120 – 250 MHz Band Pass Filter
    •  250 – 420 MHz Band Pass Filter
    •  420 – 1000 MHz Band Pass Filter
    • 1000 MHz High Pass Filter
  • ADC characteristics:
    • 12-bit native ADC
    •  Sample Frequency 2MSPS – 10.66MSPS
    •  10.4 ENOB
    •  60dB SNR
    •  67dB SFDR
  • Weight: 110g
  • Size: 95x80x30mm

Full documentation, software and support available via www.sdrplay.com
For more info regarding software available for your  RSP, visit www.sdrplay.com/platforms.html
