The shack

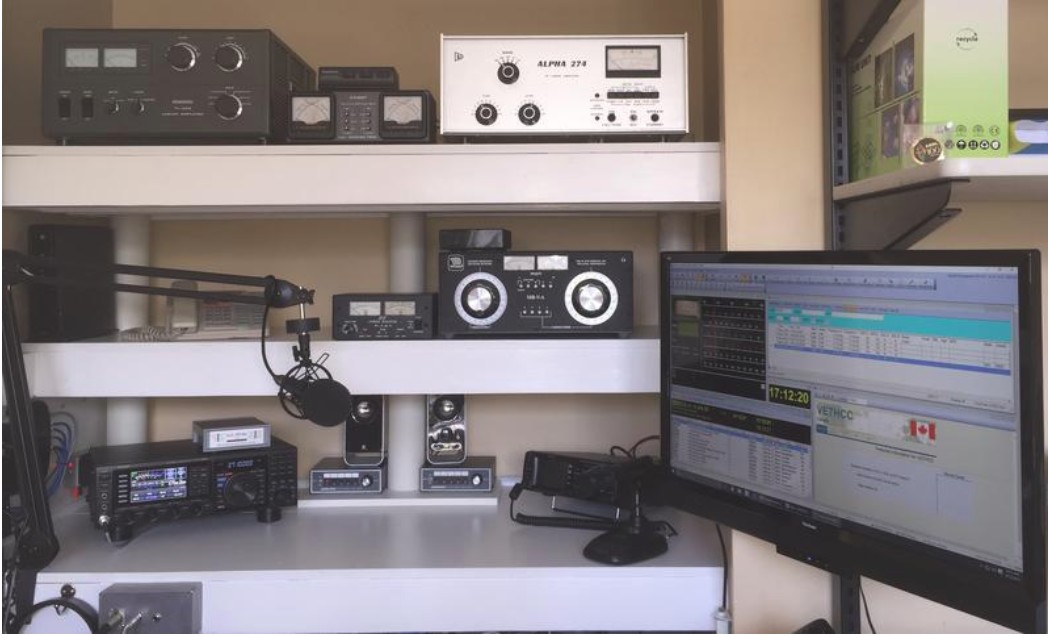

Current station configuration

Amplifiers

Kenwood TL-922

Alpha 374

Drake L7

HF Radio"s

Yaesu FTDX-3000

Yaesu FT-991

Antenna tuners

Nye Viking MB-V-A

Remote Coax Switches

2 x RCS-8V

VHF/UHF

FT-991

FTM-400

Antenna

HF Fan Dipole 10/15/20/40/80/160

Forse 12, 10 element to go up in summer of 2018

VHF/UHF Diamond

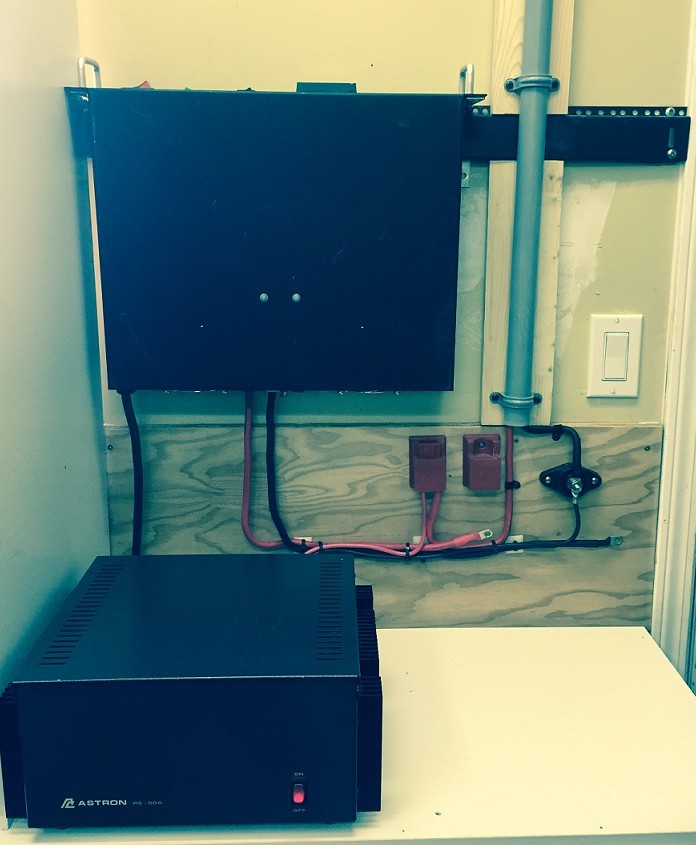

Remoted power system

Located in my shop below and remote controlled from the shack

60 Amp power supply with 2X 100 amp batteries

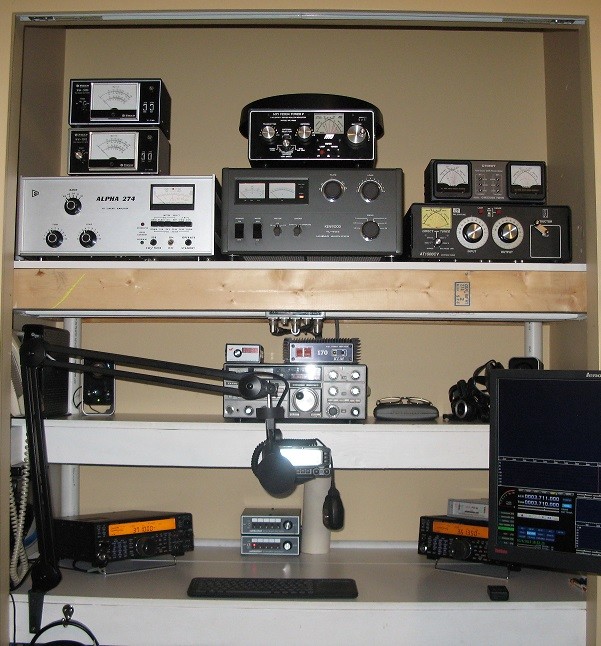

Older picture of station when I first installed it

All DC powered equipment is powered from my shop and remotely turn on/off
