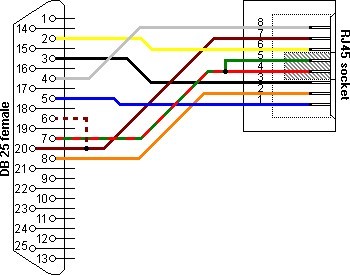

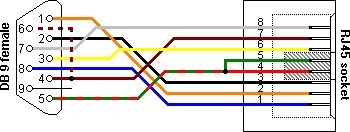

DB to RJ45
RJ45
| Function
| Color
| DB9
| DB25
|
1
| CTS
| Blue
| 8
| 5
|
2
| CD
| Orange
| 1
| 8
|
3
| RX
| Black
| 2
| 3
|
4
| SG
| Red
| 5
| 7
|
5
| SG
| Green
| 5
| 7
|
6
| TX
| Yellow
| 3
| 2
|
7
| DTR
| Brown
| 4
| 20
|
DSR
| 6
| 6
| ||
8
| RTS
| White
| 7
| 4
|
